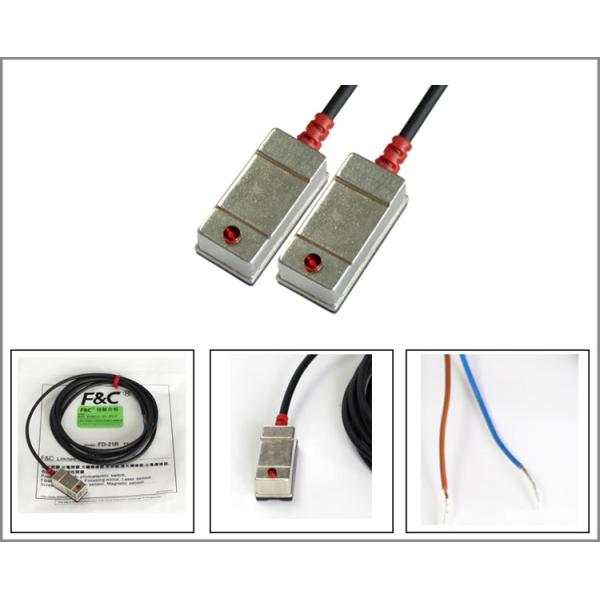

12V 2 Wires Reed Switch Electric Magnetic Switch For Cylinder

Brand Name : F&C

Model Number : FD-21R

Certification : CE RoHS

Place of Origin : China

MOQ : negotiable

Price : negotiable

Supply Ability : 10000Pcs Per Month

Delivery Time : 10days after deposit

Packaging Details : Standard Export Package

Switch Type : Normal Open

Operating voltage : 12-24VDC

Frequency : 1000HZ

Indicator : Red Indicator

Waterproof Grade : IP67

Operating Temperature : -10 ~ +70℃

Contact Now

12V 2 Wires Reed Switch Electric Magnetic Switch For Cylinder

2 Wires Electric Magnetic Switch Sensor are usder for cylinder and has function of postion for cylinder. We can make both 2 wires and 3 wires magnetic swtich

M8 M12 plug type is availabe.

12V 2 Wires Reed Switch Electric Magnetic Switch For Cylinder
Specification

Model	FD-73R	FD-73N	FD-73P
Diagram
Wires	2-wire	3-wire
Switch Type	Reed pipe Normal Open	NPN NO	PNP NO
Operating Voltage	5-120V DC/AC	10-30VDC
Switching Current	100mA.Max	200mA.Max
Contact Power	3.5W Max	6W Max.
Current Comsumption	/	11mA max.
Indicator	Red LED	Red LED	Green LED
Cable	Dia2.8 2C ,PVC
Frequency	1000HZ
Operating Temperature	-10 ~ +70℃
Shock	30G	50G	50G
Vibration	9G
Waterproof Grade	IP67
Circuit Protection	No	Polarity reverse and short-circuit protection

12V 2 Wires Reed Switch Electric Magnetic Switch For Cylinder

Our Services

1.Prompt reply to our customer, we have to reply all the email within 24hrs

2.18 month quality warranty, provide free replacement if there is any quality problem with our product.

3. Most economical shipping method will be choose to save the freight for our customer.

4. Accept OEM Order, Ship product with your logo.

Packaging & Shipping

We will ship our product aboard with standard export package.

For small Qty, We will Ship our product to you by express.

For mass production , We will ship our product to you by Air or sea.
